TorchGeo FTW segmentation -> contourrs polygons¶

This notebook runs Unet_Weights.SENTINEL2_FTW_PRUE_CCBY_EFNETB3 on a Fields of the World sample and polygonizes only class index 1 (field) with contourrs.shapes.

from pathlib import Path

import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import torch
from contourrs import shapes
from torchgeo.datasets import FieldsOfTheWorld
from torchgeo.models import Unet_Weights, unet

/home/isaaccorley/github/contourrs/.venv/lib/python3.13/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

ds = FieldsOfTheWorld(
    root="data",
    split="test",
    target="3-class",
    countries="spain",
    download=True,
)

idx = 50
sample = ds[idx]

weights = Unet_Weights.SENTINEL2_FTW_PRUE_CCBY_EFNETB3
transforms = weights.transforms
model = unet(weights=weights).eval()

with torch.inference_mode():
    logits = model(transforms(sample["image"].unsqueeze(0)))

prediction = logits.squeeze(0).argmax(dim=0).cpu().numpy().astype(np.uint8)
prediction.shape

Downloading: "https://hf.co/isaaccorley/ftw-prue-ccby/resolve/ce7ffffbceb1b55b3b6db77ecbc82313b7afa163/prue_efnetb3_ccby-aa82bfe9.pth" to /home/isaaccorley/.cache/torch/hub/checkpoints/prue_efnetb3_ccby-aa82bfe9.pth


100%|██████████| 50.8M/50.8M [00:03<00:00, 13.4MB/s]





(256, 256)

class_index = 1
class_mask = prediction == class_index

features = [
    {
        "type": "Feature",
        "properties": {"class_idx": int(value)},
        "geometry": geometry,
    }
    for geometry, value in shapes(
        class_mask.astype(np.uint8),
        mask=class_mask,
        connectivity=4,
    )
    if int(value) == 1
]

field_polygons = gpd.GeoDataFrame.from_features(features)
field_polygons.head()

	geometry	class_idx
0	POLYGON ((0 0, 1 0, 2 0, 3 0, 4 0, 5 0, 6 0, 7...	1
1	POLYGON ((49 0, 50 0, 51 0, 52 0, 53 0, 54 0, ...	1
2	POLYGON ((116 0, 117 0, 118 0, 119 0, 120 0, 1...	1
3	POLYGON ((144 0, 145 0, 146 0, 147 0, 148 0, 1...	1
4	POLYGON ((169 0, 170 0, 171 0, 172 0, 173 0, 1...	1

image = sample["image"].cpu().numpy()
rgb = np.clip(np.moveaxis(image[:3], 0, -1), 0.0, 1.0)
h, w = prediction.shape
print(rgb.shape, rgb.dtype, rgb.min(), rgb.max())

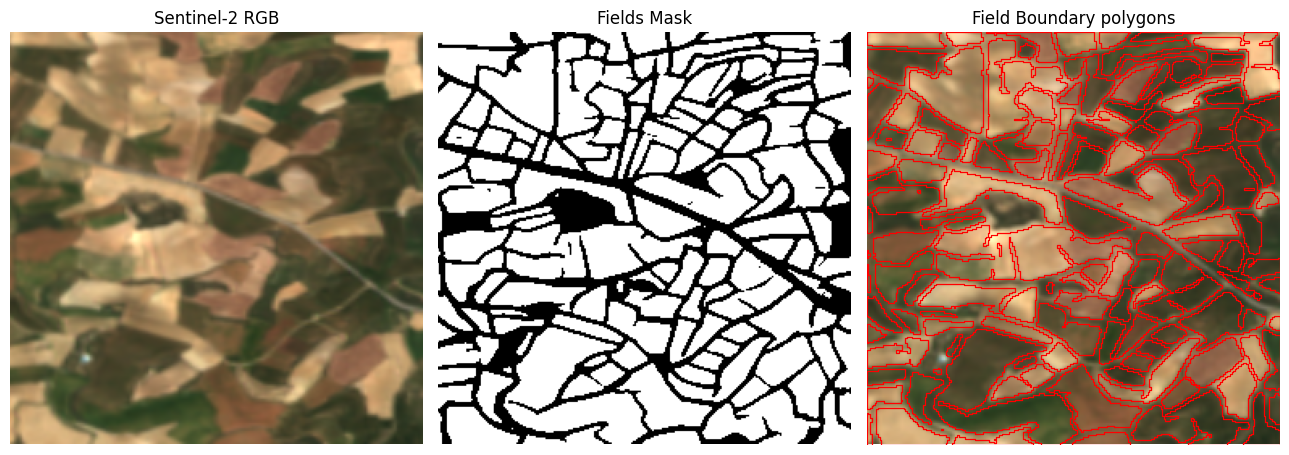

fig, axes = plt.subplots(1, 3, figsize=(13, 4.5))
axes[0].imshow(rgb, interpolation="nearest")
axes[0].set_title("Sentinel-2 RGB")

axes[1].imshow(class_mask, cmap="gray", interpolation="nearest")
axes[1].set_title("Fields Mask")

axes[2].imshow(rgb, interpolation="nearest")
field_polygons.boundary.plot(ax=axes[2], color="red", linewidth=0.9)
axes[2].set_title("Field Boundary polygons")

for ax in axes:
    ax.set_axis_off()
    ax.set_xlim(0, w)
    ax.set_ylim(h, 0)
    ax.set_aspect("equal")

plt.tight_layout()
for out_dir in (Path("assets"), Path("docs/assets")):
    out_dir.mkdir(parents=True, exist_ok=True)
    out_path = out_dir / "torchgeo_ftw_polygonize.png"
    fig.savefig(out_path, dpi=180, bbox_inches="tight")
    print(f"Saved {out_path}")
plt.show()

(256, 256, 3) float32 0.10566667 1.0
Saved assets/torchgeo_ftw_polygonize.png
Saved docs/assets/torchgeo_ftw_polygonize.png

png

output_path = Path("examples/output/ftw_fields_idx50.parquet")
output_path.parent.mkdir(parents=True, exist_ok=True)
field_polygons.to_parquet(output_path, index=False)
output_path

PosixPath('examples/output/ftw_fields_idx50.parquet')
